Ash handling system K4

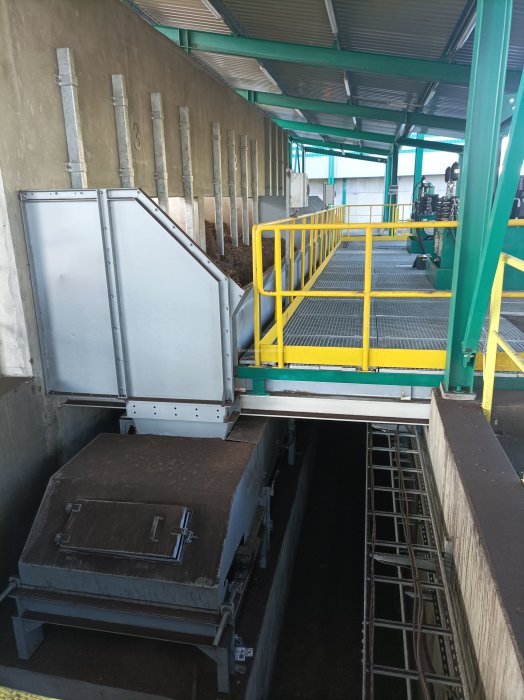

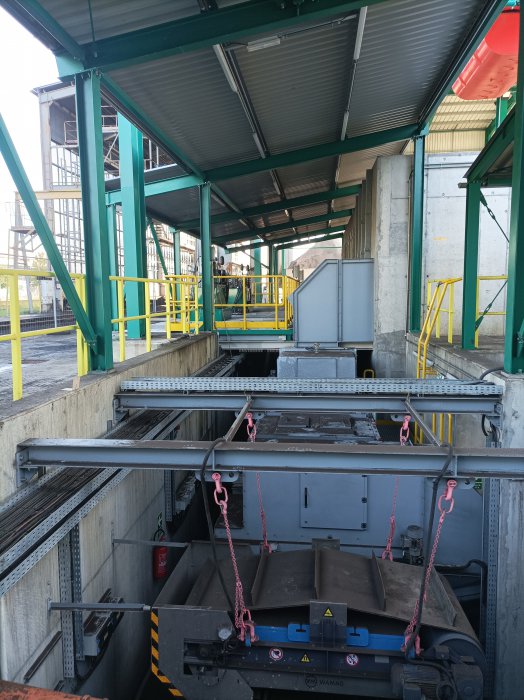

The technological assembly of the ash handling system and wet discharge conveyor consists of three screw conveyors located under the grate hoppers which are used for conveying of ash and slag and are fed into a common screw discharge conveyor. The outlet of the common screw discharge conveyor is brought below the surface into the wet discharge conveyor. The wet discharge conveyor is placed on a separate base and its output is led to the belt conveyor that conveys the ash and slag from the wet discharge conveyor's output to the slag crusher.

Conveying rate: screw conveyors and wet discharge conveyor - up to 1300 kg / hour
